Macroexpand 2025 Noj: Clay Workshop

What is Clay, why use it, and how to use it.

Author

Affiliation

Published

October 16, 2025

(ns scicloj.clay.workshop.macroexpand2025)

Welcome to the Macroexpand Clay Workshop!

The main goal of this workshop is to get you up and running with Clay. I’ll present an overview of Clay, and then we’ll spend time together getting setup and trying it. Please ask for help if you are stuck or have any questions.

What is Clay?

Clay is a tool that turns a Clojure namespace into a Document.

Clay renders code, results, comments, markdown and visualizations.

Useful for documentation, data exploration, visualization, and blogging.

Bundled with Noj; the SciCloj collection of data science libraries.

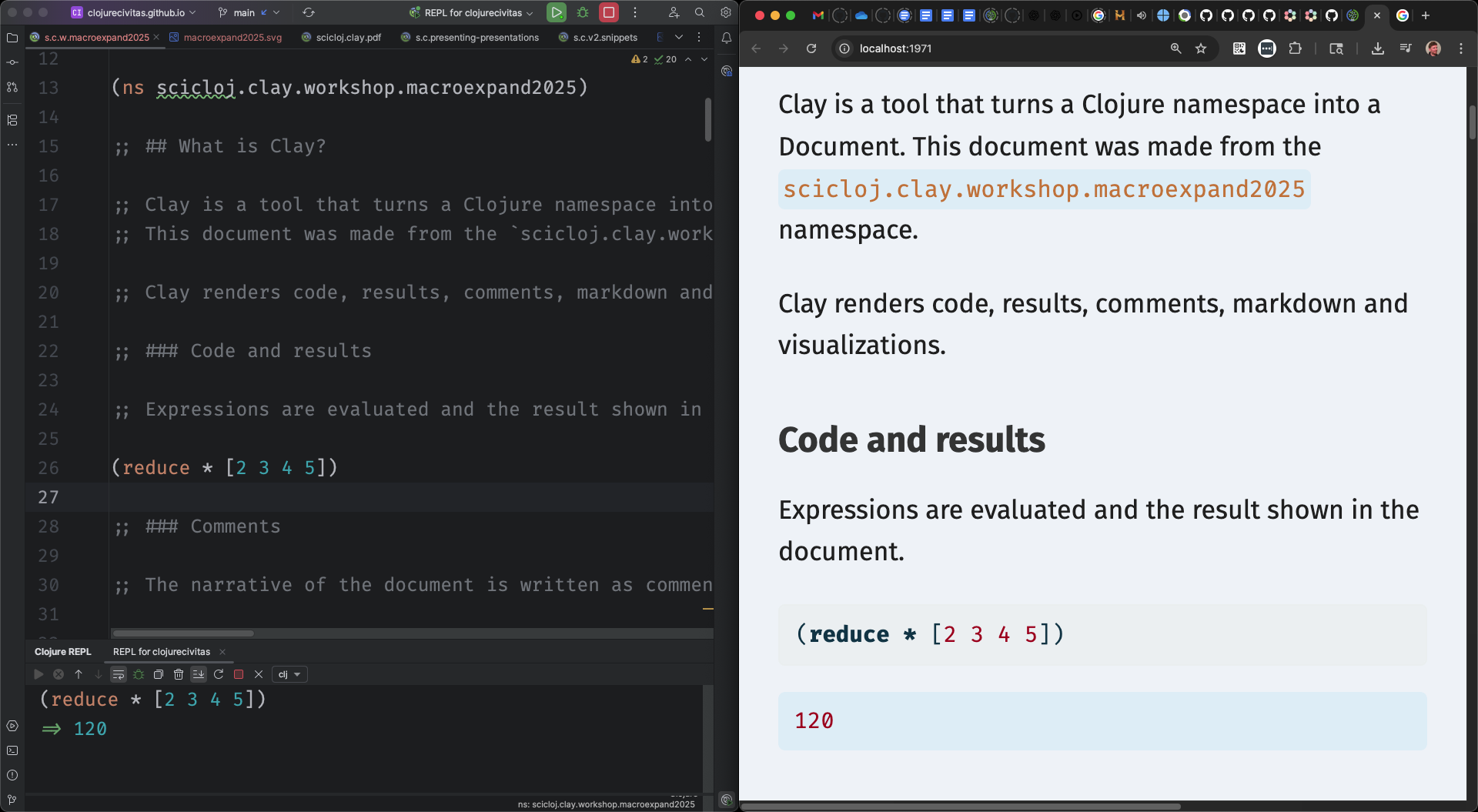

What does Clay produce?

HTML or Markdown of comments, code, and values. This HTML document was made from src/scicloj/clay/workshop/macroexpand2025.clj.

Code and results

Expressions are evaluated and the result shown in the document.

(reduce * [2 3 4 5])

Comments

The narrative of the document is written as comments.

Comments may contain Markdown.

;; This is a _markdown_ comment.

This is a markdown comment.

;; > Euler's identity is $e^{i\pi} + 1 = 0$

Euler’s identity is \(e^{i\pi} + 1 = 0\).

;; ![hammer and spanner](macroexpand2025.svg)

CommonMark (Quarto). Quarto has features like footnotes¹. See Markdown reference for the full feature set.

Visualizations

Values may be annotated as visualizations. Clay can make tables, charts, and more.

^:kind/table
{:types   ["Table" "Chart" "Image" "JavaScript"]
 :purpose ["Summarize data"
           "Enable comparison"
           "Enhance appeal"
           "Add interactivity"]}

types	purpose
Table	Summarize data
Chart	Enable comparison
Image	Enhance appeal
JavaScript	Add interactivity

^:kind/echarts
{:title   {:text "Charts"}
 :tooltip {}
 :legend  {:data ["sales"]}
 :xAxis   {:data ["Shirts", "Cardigans", "Chiffons",
                  "Pants", "Heels", "Socks"]}
 :yAxis   {}
 :series  [{:name "sales"
            :type "bar"
            :data [5 20 36
                   10 10 20]}]}

^:kind/graphviz
["digraph D {
  A [shape=diamond]
  B [shape=box]
  C [shape=circle]

  A -> B [style=dashed, color=grey]
  A -> C [color=\"black:invis:black\"]
  A -> D [penwidth=5, arrowhead=none]
}"]

Many more (33) visualizations are supported, see Clay Examples.

Hiccup as the “swiss army knife” enables anything HTML can do:

^:kind/hiccup
[:svg {:width "100%"}
 [:circle {:r 40 :cx 50 :cy 50 :fill "lightblue"}]
 [:circle {:r 20 :cx 50 :cy 50 :fill "lightgreen"}]]

Anything you can do in a web page can be expressed as hiccup, such as including JavaScript in the page.

^:kind/hiccup
[:script {:src "https://cdn.jsdelivr.net/npm/scittle-kitchen/dist/scittle.js"}]

^:kind/hiccup is Clojure syntax for attaching metadata. Kindly is a standard for annotation, and helpers for attaching metadata annotations.

(kind/hiccup
  [:svg {:width "100%"}
   [:circle {:r 40 :cx 50 :cy 50 :fill "lightblue"}]
   [:circle {:r 20 :cx 50 :cy 50 :fill "lightgreen"}]])

Metadata on values for visualization tools like Clay to know what to do with the value.

So - Notebooks?

Yes, Clay interleaves code, results, narrative and visualizations.

Similar to Jupyter, Clerk, etc.

But, there is no execution model or environment.

You write plain Clojure code, you can run it without Clay.

Clay is not a dependency of your code.

Write with your normal workflow, sometimes using Clay to visualize as you go.

Clay takes code as input and makes a document.

Produces HTML or Markdown which may be further processed into PDF, slides, or websites.

Why make documents from code?

We value reproducible artifacts

Premise	Reason
Sharing ideas is important	Foundation of human progress. Fuels technology, communities, and civilization.
Code crystallizes thinking	Concrete, logical, reproducible, explorable, and extensible.
Edit code not documents	Thinking and coding is the hard part.
Publishing matters	Share your idea in a widely accessible formats.

Why use Clay?

Clay is a simple approach that keeps out of your way.

Clay is *simple*
	Notebooks	Clay
Visualizing	React application	HTML+JavaScript
Coding	Custom execution model	REPL
Publishing	Notebook	Markdown

People really enjoy the workflow and results.

“Best notebook experience I’ve had”

How to Clay

To use Clay is to send it some code. Usually we also want to view the document. Clay has a built-in server to show HTML.

REPL

Clay needs to be on the classpath to invoke it.

(comment
  (require 'scicloj.clay.v2.make)
  (scicloj.clay.v2.make/make! {:source-path "src/scicloj/clay/workshop/macroexpand2025.clj"}))

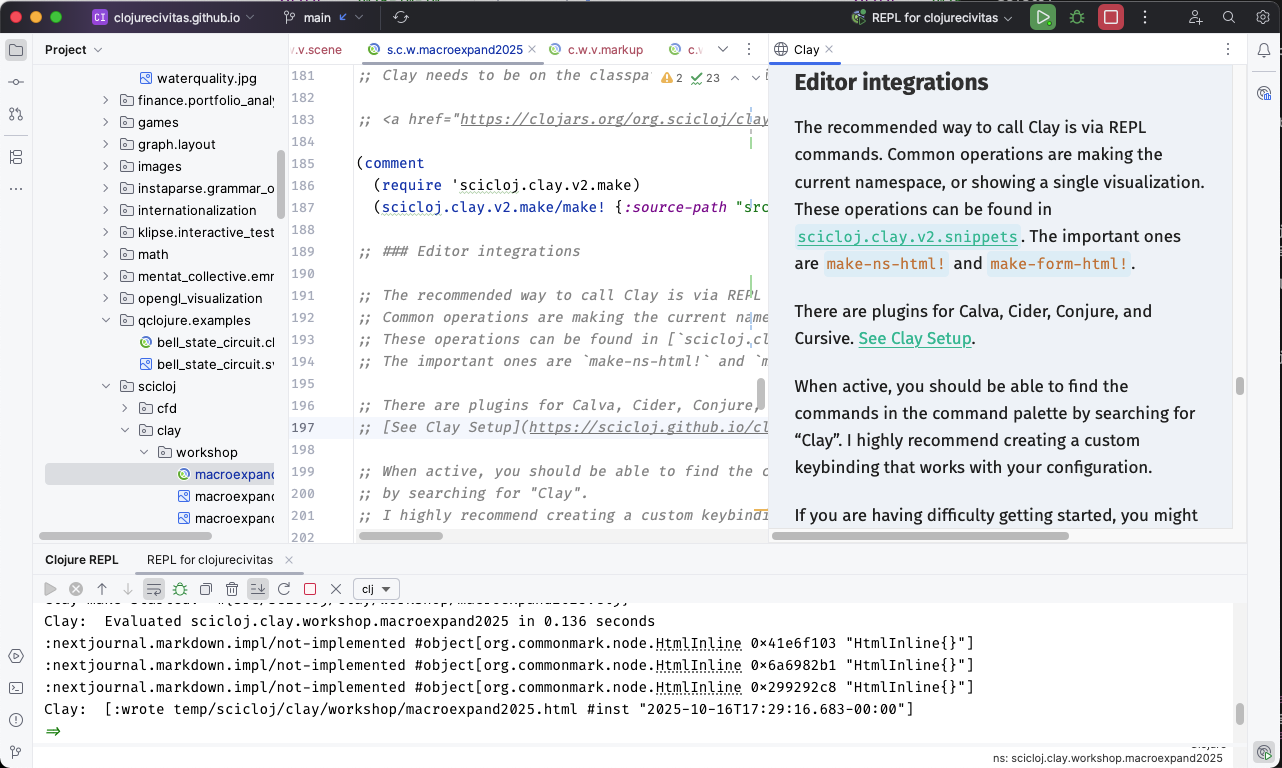

Editor integrations

The recommended way to call Clay is via REPL commands. Common operations are making the current namespace, or showing a single visualization. These operations can be found in scicloj.clay.v2.snippets. The important ones are make-ns-html! and make-form-html!.

There are plugins for Calva, Cider, Conjure, and Cursive. See Clay Setup.

When active, you should be able to find the commands in the command palette by searching for “Clay”. I highly recommend creating a custom keybinding that works with your configuration.

A browser window will be shown when you call Clay.

Cursive and Calva have an embedded viewer

Anyone stuck?

If you are having difficulty getting started, you might find it easier to clone an existing project:

These projects have some extra configuration in .vscode and .idea.

Live reload

Clay can watch for file changes and re-render the document. Use the “Clay watch” REPL command to toggle live reload mode.

Create or edit a source file and it will be shown in the browser.

Alternatively you can launch Clay in live reload mode with

clojure -M -m scicloj.clay.v2.main

Or call watch! from the REPL:

(comment
  (require 'scicloj.clay.v2.snippets)
  (scicloj.clay.v2.snippets/watch! {}))

Ideas for explorations

Take some time to create your own namespace and use Clay to render it. Here are some tiny ideas you might write about.

What is macroexpand?

Macros expand code at compile time. An example of a macro is and. The expression (and true false) expands into an if expression.

(macroexpand '(and true false))

(let*
 [and__5600__auto__ true]
 (if and__5600__auto__ (clojure.core/and false) and__5600__auto__))

Frequencies

Clojure has a very nifty inbuilt frequencies function.

(def freq
  (frequencies "frequencies takes a sequence like this string,
              and returns a map"))

freq

{\space 23,
 \a 5,
 \c 2,
 \d 1,
 \e 9,
 \f 1,
 \g 1,
 \h 1,
 \i 4,
 \newline 1,
 \k 2,
 \, 1,
 \l 1,
 \m 1,
 \n 5,
 \p 1,
 \q 2,
 \r 4,
 \s 6,
 \t 4,
 \u 3}

Charts

Try TablePlot

(def scatter-ds
  (tc/dataset {:x [1 2 3 4 5]
               :y [10 20 15 25 18]
               :z [1 2 1 2 1]}))

(-> scatter-ds
    (tp/base {:=title "Sample Scatter Plot"})
    (tp/layer-point {:=x :x
                     :=y :y}))

Question time

Please speak up! Stuck? Need help? Want to see a feature demonstrated? Questions about configuration, Quarto, Markdown, formats, narrowing? Feature suggestions? Share your experiences?

Remaining questions can be asked in the #clay-dev channel.

source: src/scicloj/clay/workshop/macroexpand2025.clj

Footnotes

Quarto is a well established, widely used publishing solution↩︎
